BINDER

Constant Climate Chamber KBF-LQC Series

with ICH-compliant light source and light dose control

Configurable, constant climate chambers with a large temperature and humidity range.  A comprehensive collection of accessories makes it highly compatible for adaptation to specific customer requirements. They are fully compliant with ICH guidelines and offer the best solution for stability testing of active pharmaceutical ingredients at 40 °C and 75% RH, as well as for numerous other applications.



KBF-LQC 240 – Capacity 8.7 cu.ft. I 247 L
KBF-LQC 720 – Capacity 24.7 cu.ft. I 700 L



Price: Contact Pacific Science, LLC

GET A QUOTE
GET A QUOTE on this product
GET A QUOTE on this product
GET A QUOTE on this product

PRODUCT INFORMATION:

  • PRODUCT SPECIFICATIONS
  • PRODUCT FEATURES
  • LITERATURE & DOWNLOADS
BINDER – Constant Climate Humidity Test Chamber with ICH-Compliant Light Source and Light Dose Control

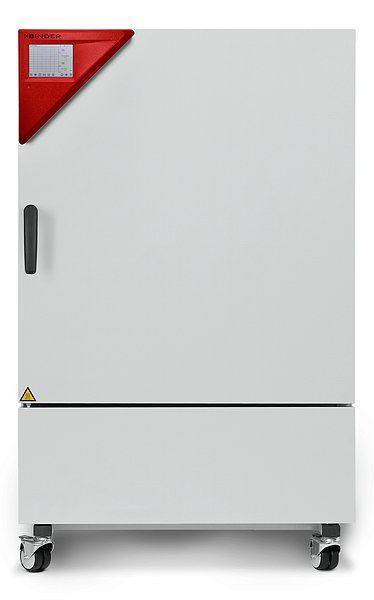

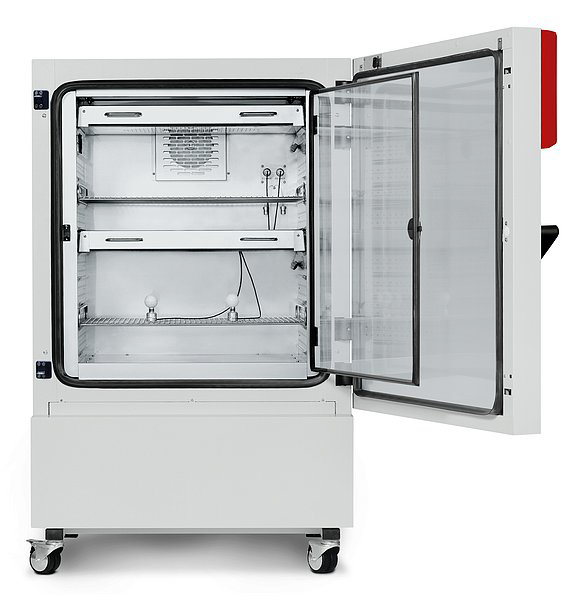

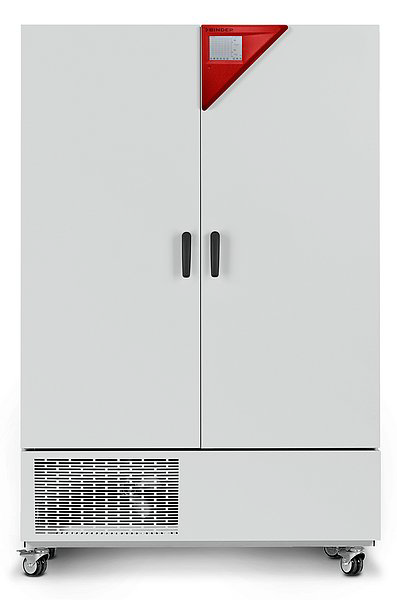

  • Two models are available: a 1-door (KBF-LQC 240) and a 2-door (KBF-LQC 720)
  • Application: Laboratory
  • Tested parameters include temperature, humidity, and light
  • The main advantage of the BUNDER KBF LQC series is the patented light photometry for photostability tests.
  • 30% larger load compared to competitors
  • Temperature range: 0°C to +70°C
  • Temperature range with light: +10 °C to +60 °C
  • Humidity Range: 10% to 80% RH
  • Positionable illumination cassettes with ICH-compliant UV/Vis light source
  • Independent light-dose control of UV-A and visible light with spherical sensors
  • Unit self-test for comprehensive status analysis
  • Tight-sealing inner door made of safety glass (ESG)
  • Avoidance of glass corrosion by special TIMELESS coating
  • Inner chamber and racks made of stainless steel
  • Intuitive touchscreen controller with time-segment and real-time programming
  • Internal data logger – user can read the measured values in open format via USB
  • Computer interface: Ethernet

KBF LQC 240 Data Sheet

KBF LQC 720 Data Sheet

KBF LQC 240 Spec Sheet

KBF LQC 720 Spec Sheet

Brochure – Humidity Test Chambers
