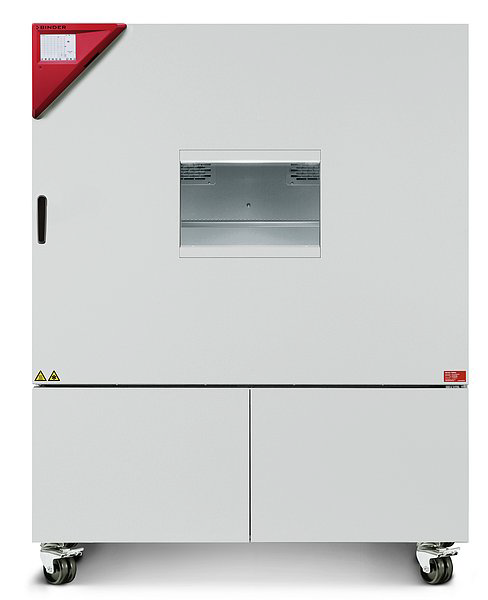

Reach-in Temperature Chamber Binder MK 720 Front

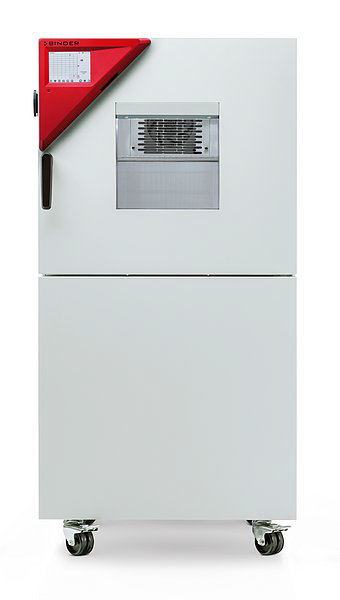

Reach-in Temperature Chamber Binder MK 056 Front

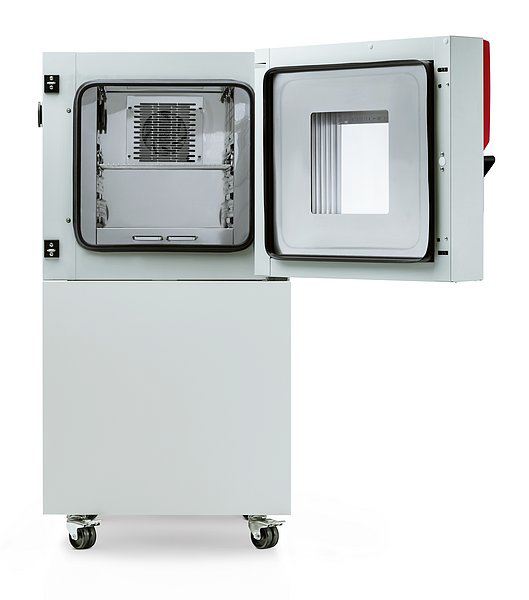

Reach-in Temperature Chamber Binder MK 056 Open

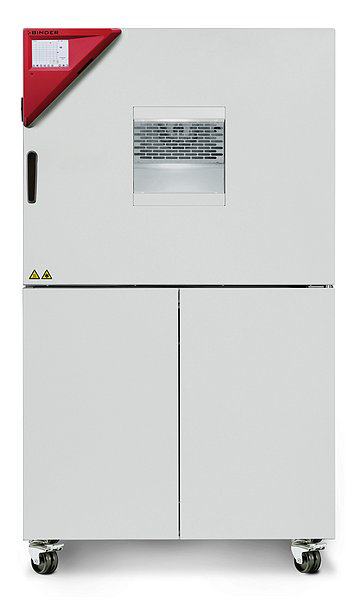

Reach-in Temperature Chamber Binder MK 115 Front

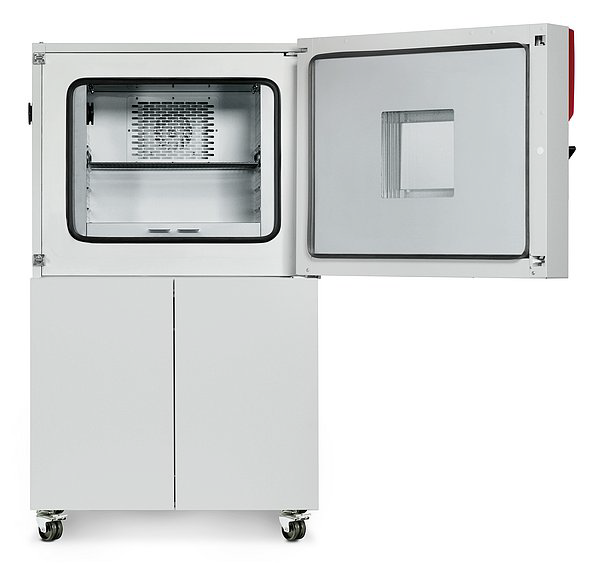

Reach-in Temperature Chamber Binder MK 115 Open

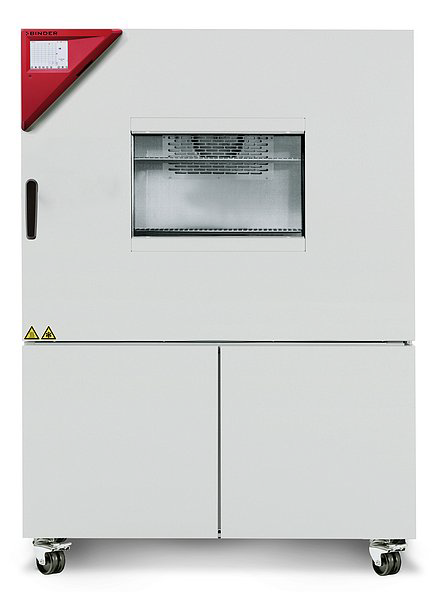

Reach-in Temperature Chamber Binder MK 240 Front

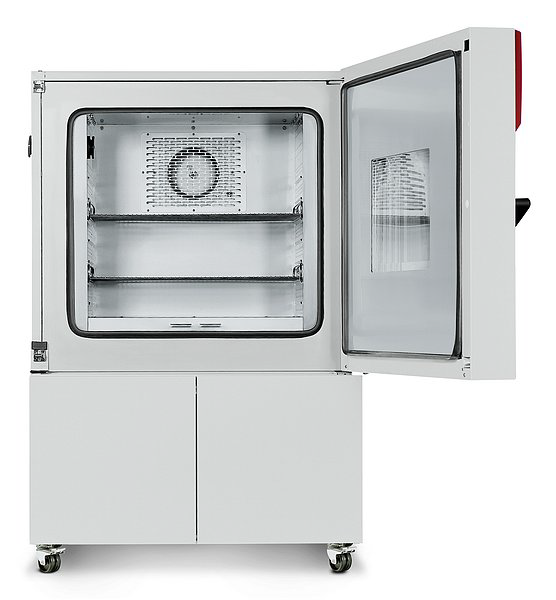

Reach-in Temperature Chamber Binder MK 240 Open

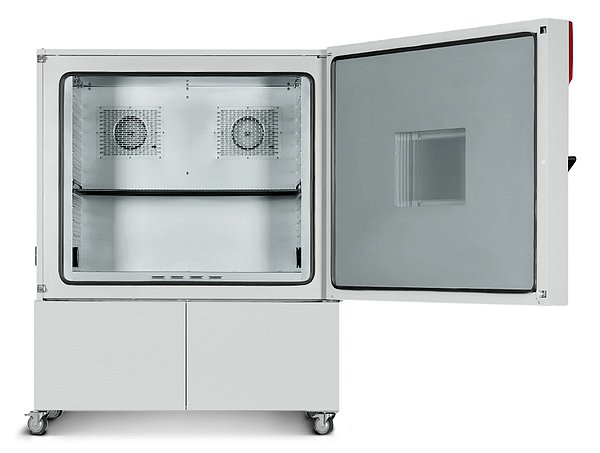

Reach-in Temperature Chamber Binder MK 720 Open

BINDER

Dynamic Climate Chamber MK Series

For rapid temperature changes

The BINDER MK series chamber is suitable for all heat and cold tests between -40 °C and 180 °C. The MK is a clever alternative to complex individual solutions for cyclical temperature tests.

MK 720 – Capacity 25.9 cu.ft. I 734 L

MK 240 – Capacity 8 cu.ft. I 228 L

MK 115 – Capacity 4.1 cu.ft. I 115 L

MK 56 – Capacity 2.11 cu.ft. I 60 L

Price: Contact Pacific Science, LLC

GET A QUOTE on this product

PRODUCT INFORMATION:

PRODUCT SPECIFICATIONS
PRODUCT FEATURES
LITERATURE & DOWNLOADS

Specifications

DYnamic CLIMATE CHAMBER Reach-in Temperature Chamber	MODEL MK 720	MODEL MK 240	MODEL MK 115	MODEL MK 56
ELECTRICAL (V)	400 or 480 V	400 OR 480 V	400 OR 480 V	230 or 240 V
External Dimensions (W x D X H)	62.2″w x 44.8″D x 78.9″H (1580 x 1140 x 2005 MM)	43.9″w x 36.4″D x 67.3″H (1115 x 925 x 1710 MM)	38.5″w x 34″D x 67.9″H (980 x 865 x 1725 MM)	28.34″W X 30.6″D X 56.9″H (720 x 778 x 1445 MM)
internal dimensions (W x D x H)	47.2″w x 23.6″D x 40.2″H (1200 x 600 x 1020 MM)	28.9″w x 17.4″D x 27.6″H (735 x 443 x 700 MM)	23.6″w x 15.74″D x 18.89″H (600 X 400 X 480 MM)	15.7″W X 13.77″D X 16.53″H (400 x 350 x 420 MM)
Volume	734 Liters	228 LITERS	115 Liters	60 LITERS
EFFECTIVE CAPACITY	25.9 CU.FT	8 CU.FT	4.1 CU.FT	2.11 CU.FT
NET WEIGHT (UNIT EMPTY)	1256 LBS	749 lbs	573 LBS	363 LBS
Temperature Range	-40°C to +180°C	-40°C TO +180°C	-40°C TO +180°C	-40°C TO +180°C
DOORS	1 Door	1 DOOR	1 DOOR	1 DOOR
SHELVES (STD/MAX)	1/11	1/6	1/4	1/4
MATERIAL	STAINLESS STEEL	STAINLESS STEEL	STAINLESS STEEL	STAINLESS STEEL

ALSO AVAILABLE: HUMIDITY CONTROL ROoms

BINDER – Dynamic Climate Chamber for rapid temperature changes

Four models and sizes are available:
- 1-door (MK 720)
- 1-door (MK 240)
- 1-door (MK 115)
- 1-door (MK 56)
400 or 480 (volt) available
230 or 240 (volt) available for MK 56
Temperature range: -40°C to +180°C
Programmable condensation protection for test material
Heated viewing window with LED interior lighting
Intuitive touchscreen controller with time-segment and real-time programming
Intuitive touchscreen controller with time-segment and real-time programming
The inner chamber and racks are made of stainless steel
Internal data logger – measured values can be read out in open format via USB
Class 2 independent adjustable temperature safety device (DIN 12880) with visual alarm

Specifications

DYnamic CLIMATE CHAMBER Reach-in Temperature Chamber	MODEL MK 720	MODEL MK 240	MODEL MK 115	MODEL MK 56
ELECTRICAL (V)	400 or 480 V	400 OR 480 V	400 OR 480 V	230 or 240 V
External Dimensions (W x D X H)	62.2″w x 44.8″D x 78.9″H (1580 x 1140 x 2005 MM)	43.9″w x 36.4″D x 67.3″H (1115 x 925 x 1710 MM)	38.5″w x 34″D x 67.9″H (980 x 865 x 1725 MM)	28.34″W X 30.6″D X 56.9″H (720 x 778 x 1445 MM)
internal dimensions (W x D x H)	47.2″w x 23.6″D x 40.2″H (1200 x 600 x 1020 MM)	28.9″w x 17.4″D x 27.6″H (735 x 443 x 700 MM)	23.6″w x 15.74″D x 18.89″H (600 X 400 X 480 MM)	15.7″W X 13.77″D X 16.53″H (400 x 350 x 420 MM)
Volume	734 Liters	228 LITERS	115 Liters	60 LITERS
EFFECTIVE CAPACITY	25.9 CU.FT	8 CU.FT	4.1 CU.FT	2.11 CU.FT
NET WEIGHT (UNIT EMPTY)	1256 LBS	749 lbs	573 LBS	363 LBS
Temperature Range	-40°C to +180°C	-40°C TO +180°C	-40°C TO +180°C	-40°C TO +180°C
DOORS	1 Door	1 DOOR	1 DOOR	1 DOOR
SHELVES (STD/MAX)	1/11	1/6	1/4	1/4
MATERIAL	STAINLESS STEEL	STAINLESS STEEL	STAINLESS STEEL	STAINLESS STEEL

ALSO AVAILABLE: HUMIDITY CONTROL ROoms
