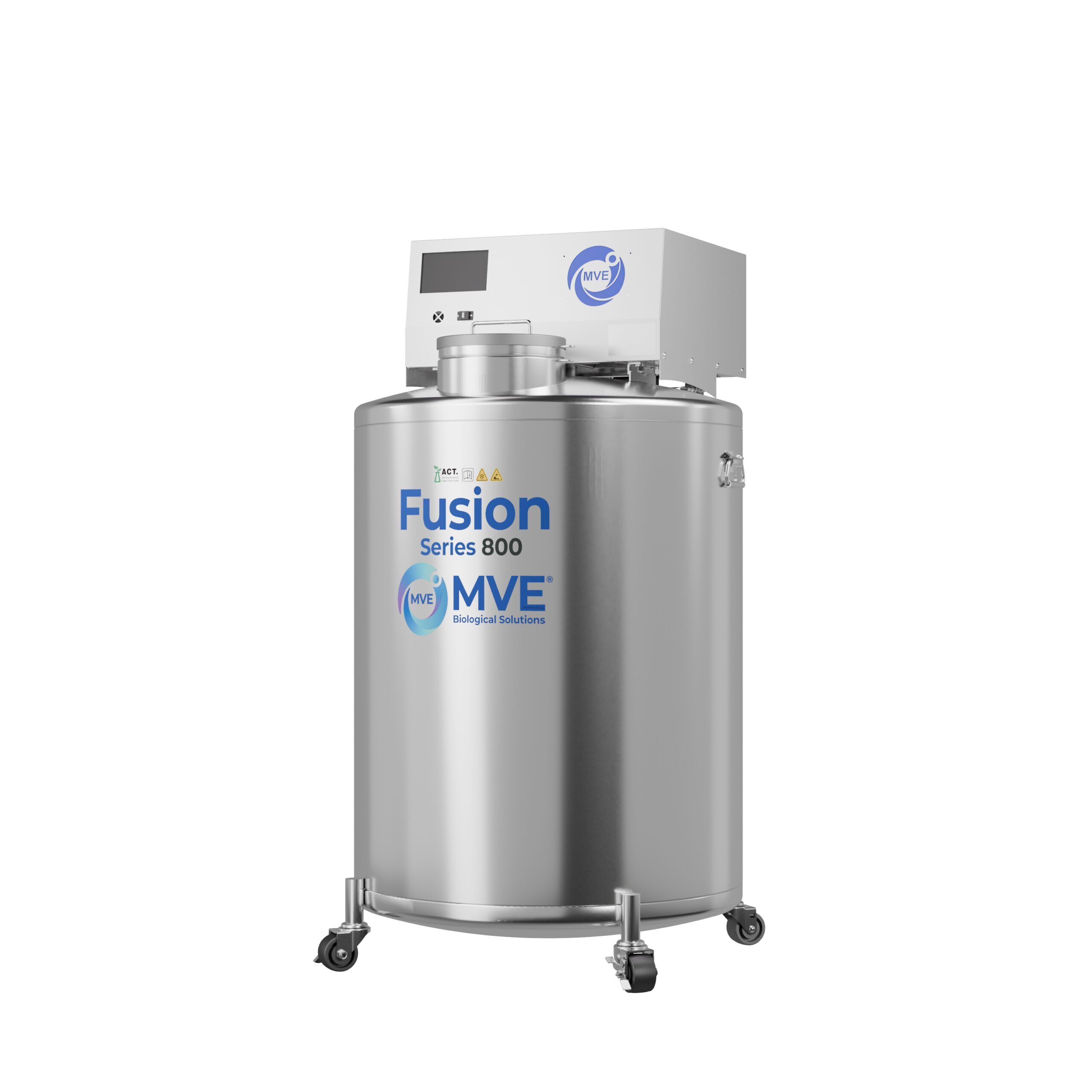

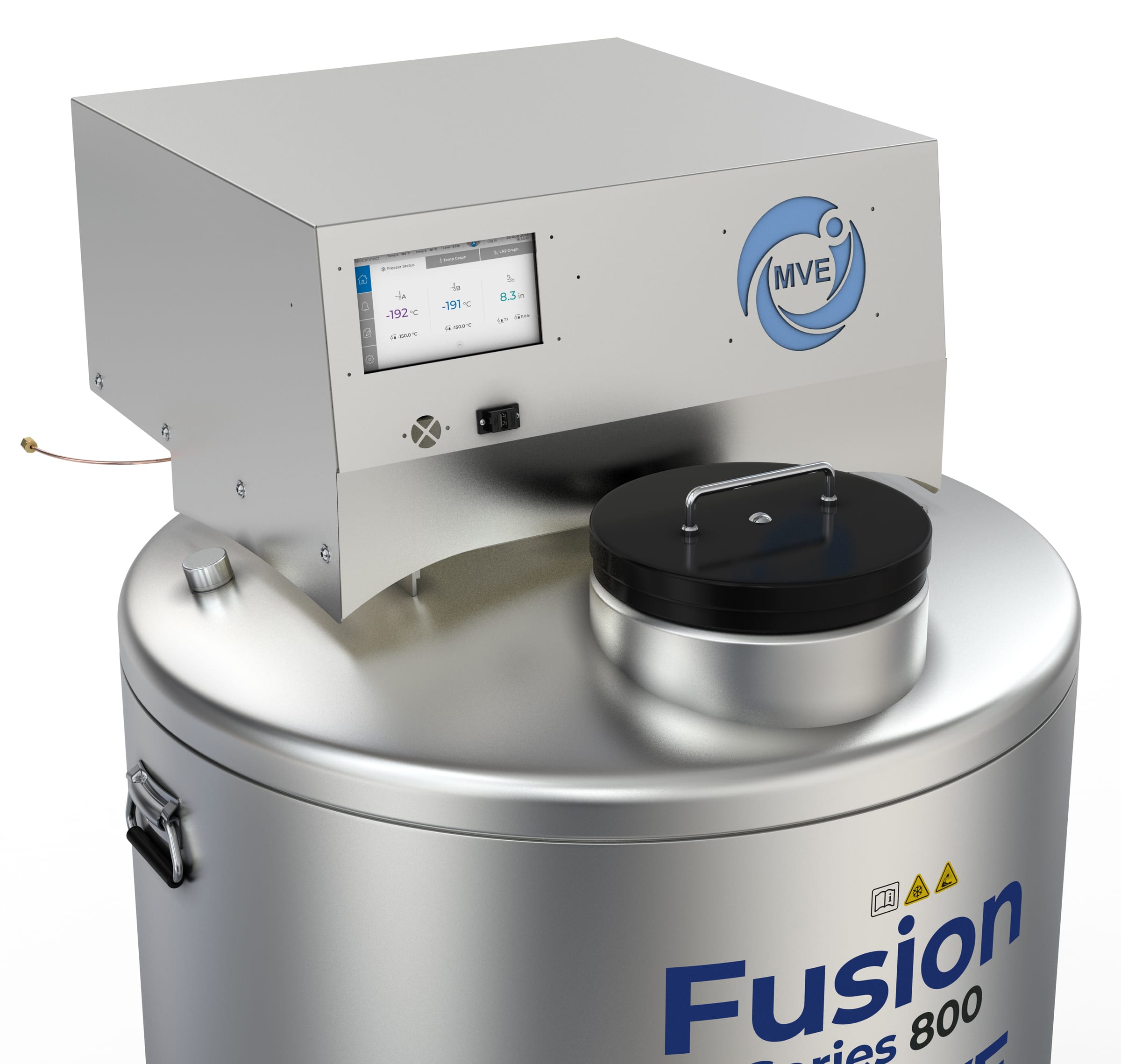

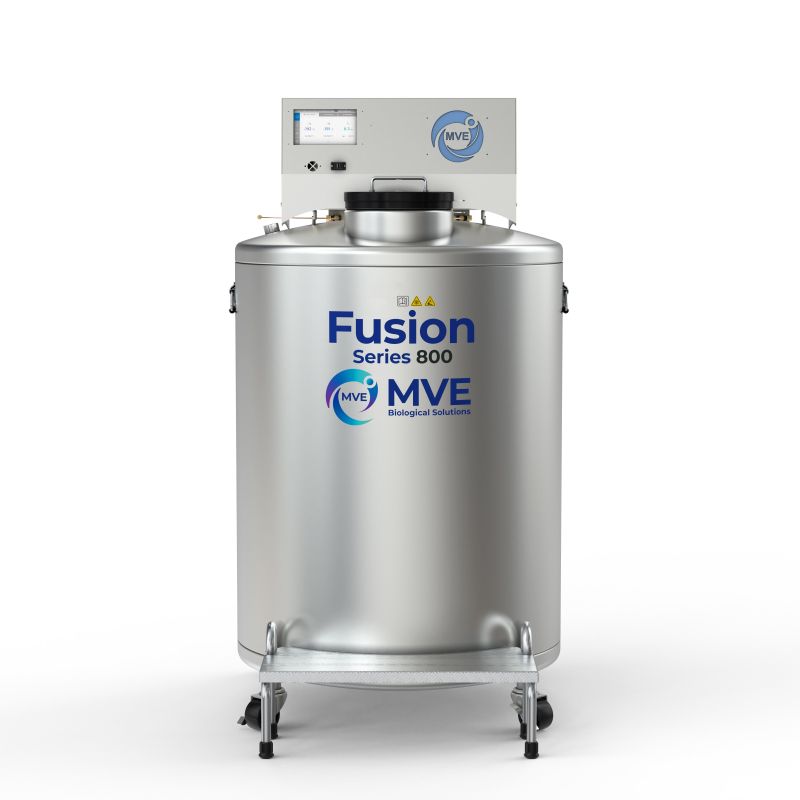

The MVE Fusion® 800 Series

Technical Specifications

Specification	Measurement
Neck Opening	9.2 in (234 mm)
Usable Internal Height	28.7 in (730 mm)
Inner Diameter	27.9 in (707 mm)
Overall Height	59.3 in (1507 mm)
Liftover Height	49.7 in (1263 mm)
Door Width Requirement	32.0 in (813 mm)
Weight (Empty / Operating)	500 lb (226 kg) / 650 lb (295 kg)
Top Box Temp (Steady State)	-150°C
Operating Pressure	22 PSIG

Storage Capacity

Vials	Quantity
Inventory Racks (13-2, 100 Cell)	9 total

Blood Bag Capacities	Total Bags
25 mL (Medsep)	987
50 mL (Baxter)	672
250 mL (Baxter)	300
500 mL (Baxter)	216
200 mL (Gambro)	132

The MVE Fusion® 800 Series offers:
• Self-sustaining cryogenic storage, eliminating the need for ongoing LN₂ refills and reducing operational risk.
• A compact footprint designed to fit through standard doorways — ideal for retrofit installations and space-limited labs.
• Energy-efficient performance that delivers cryogenic temperatures with significantly lower energy consumption than mechanical freezers.
• Improved safety and reliability, minimizing lab disruptions and reducing exposure associated with LN₂ handling.
• Sustainable operation that supports institutional efficiency and carbon-reduction goals.

• Award-winning Fusion® self-sustaining technology
• Compact 32-inch-wide footprint for easy installation
• QDrive™ cryo-cooler with fewer moving parts and low vibration
• No routine LN₂ refills required
• Mounted casters and integrated handles for flexible placement
• Reliable cryogenic performance with minimal maintenance
• FIVE-year vacuum warranty
• TWO-year standard warranty
• UL/C-UL listed freezer system
