Specifications
Specifications

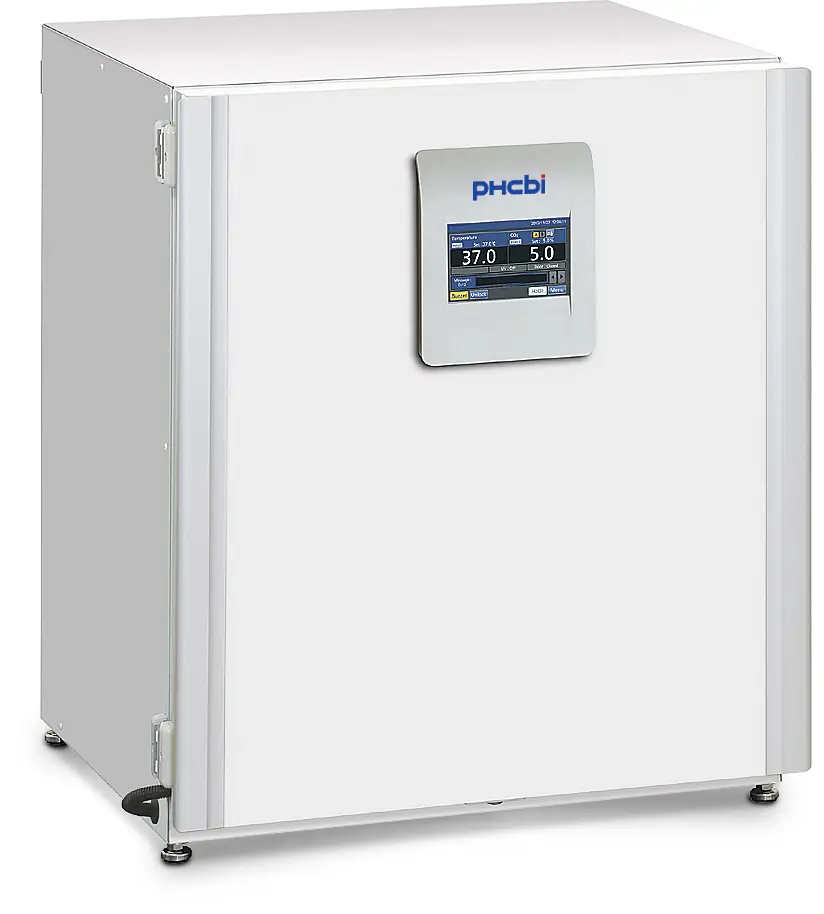

CO2 Incubator for cell culture | MODEL mco-230AICUVLG-PA |
ELECTRICAL (V) | 115 V |

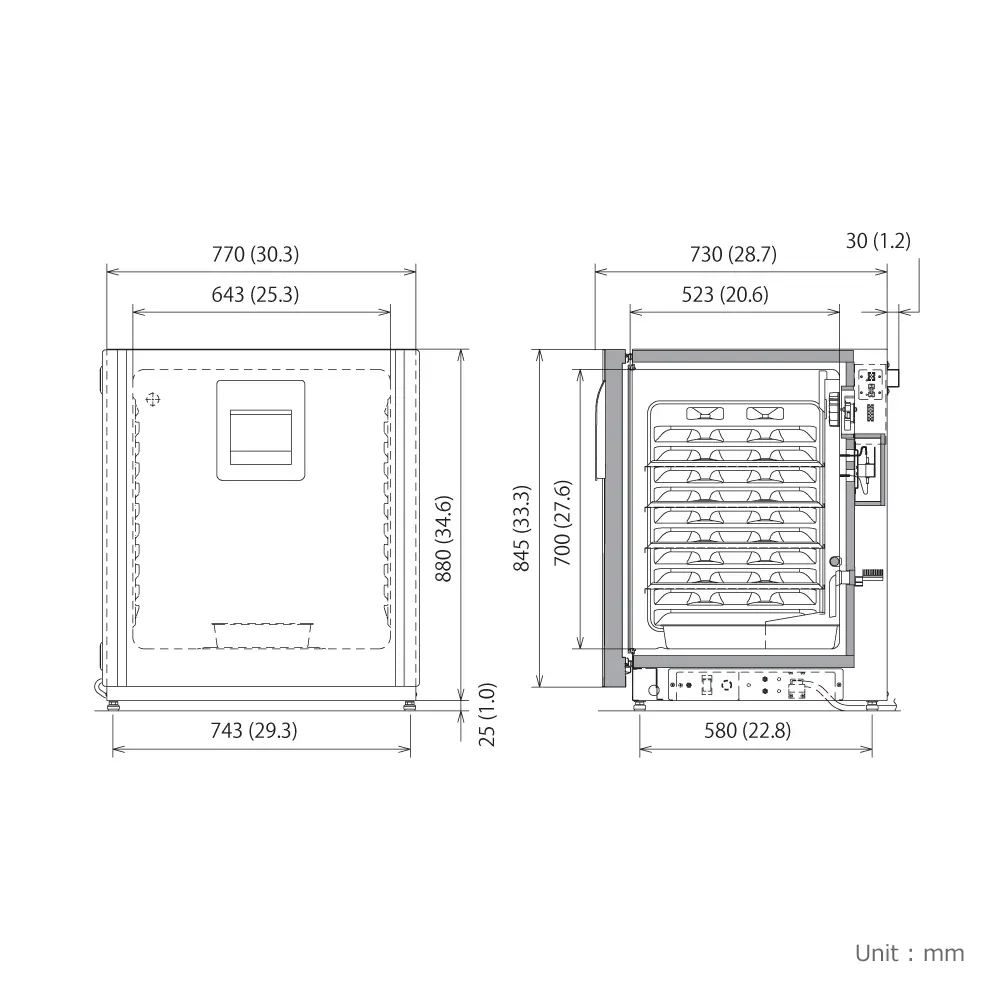

External Dimensions (W x D X H) | 30.3″W x 28.7″D x 35.6″H (770 x 730 x 905 MM) |
INTERNAL DIMENSIONS(W X D X h) | 25.3″ W x 20.6″ D x 27.6″ H (643 x 523 x 700 MM) |
Volume | 230 Liters |
EFFECTIVE CAPACITY | 8.1 CU.FT |
NET WEIGHT | 198 LBS. (90 KG) |
Temperature Control Range | Ambient temperature +5°C to +50°C |
TEMPERATURE UNIFORMITY | ±0.25ºC (ambient temperature: 23ºc setting: 37ºC, CO2: 5 %, no load) |
co2 cONTROL RANGE | 0% to 20% |
co2 vARIATION | ±0.15% (ambient temperature: 23ºC setting: 37ºC, CO2: 5%, no load) |
co2 sENSOR tYPE | dUAL INFRARED sENSOR |
HEATING METHOD | DIRECT HEAT AND AIR JACKET SYSTEM |
decontamination method | sTANDARD 24-HR FULL CHAMBER uv DECONTAMINATION |
HUMIDIFYING SYSTEM | NATURAL EVAPORATION WITH HUMIDIFYING PAN 95% r.h. ±0.5% r.h. |

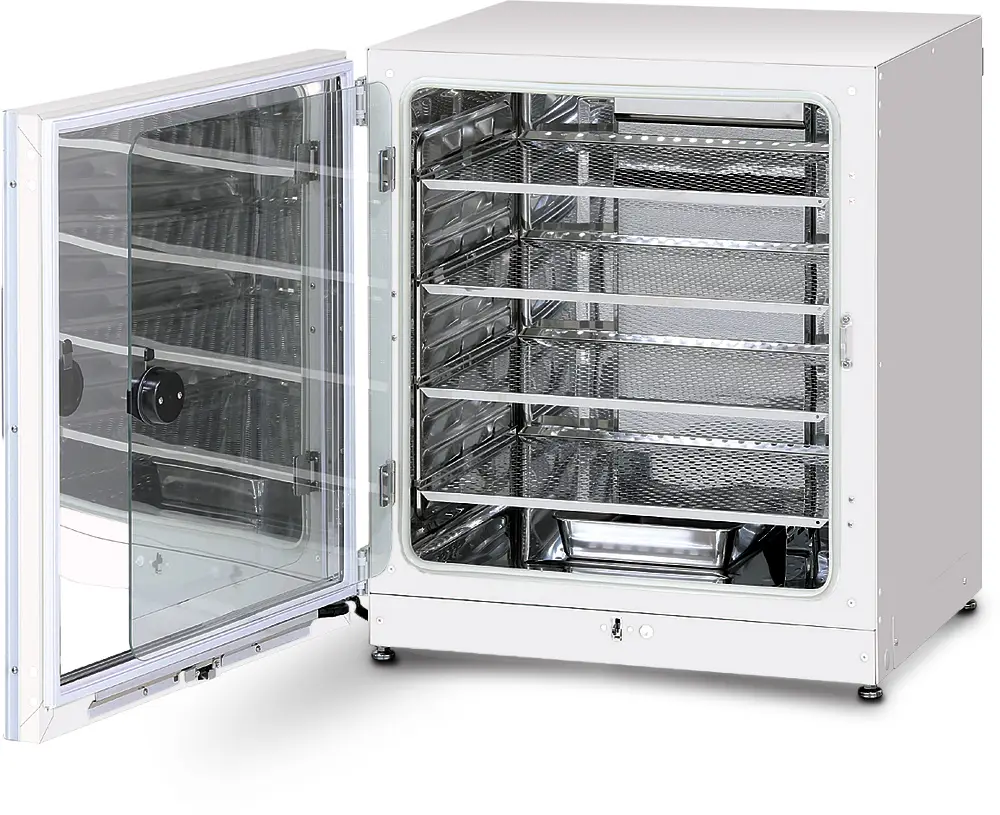

Shelves | 24.4″ w X 17.7″ d (620 X 450 mm) mAXIMUM LOAD 15 LBS (17 kg) / tRAY |

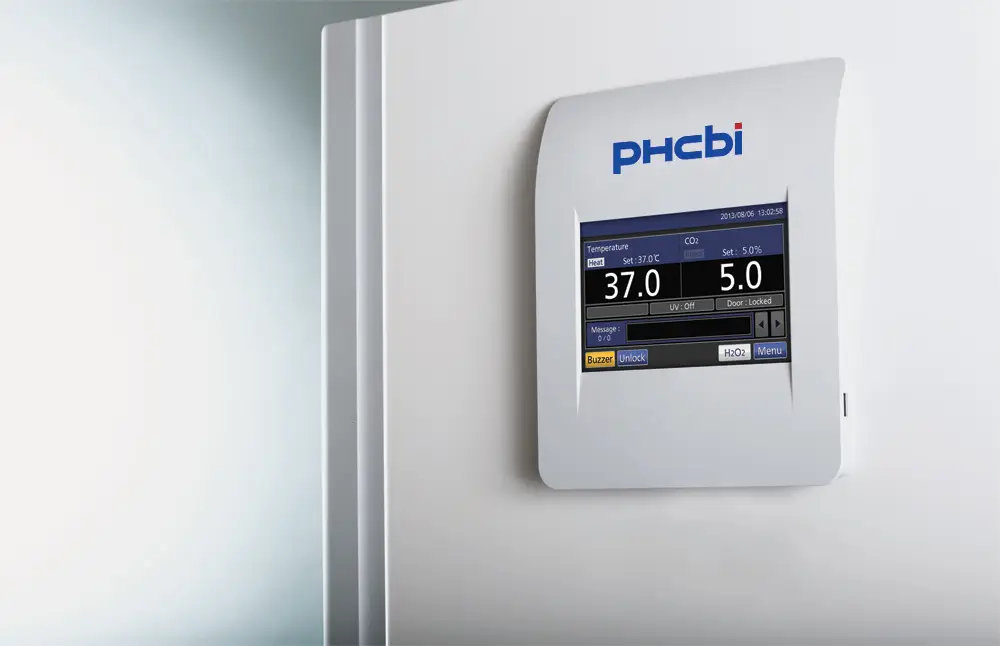

DISPLAY | COLOR LCD TOUCHSCREEN |
Noise Level | 29 db(a) |
