Specifications
Specifications

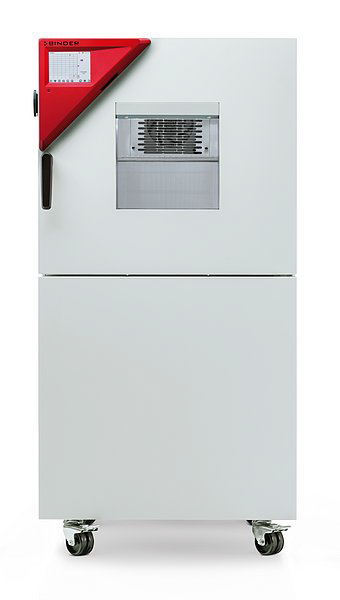

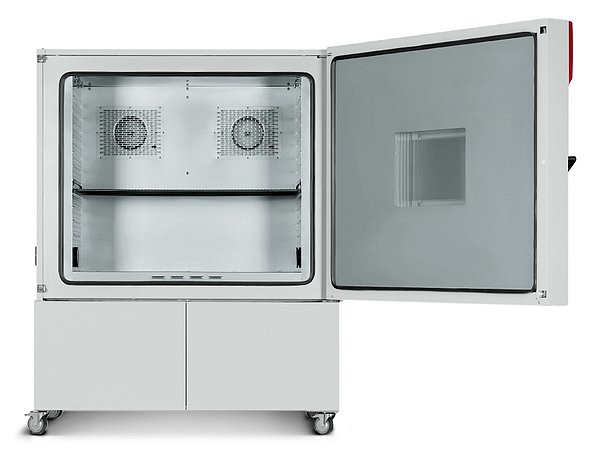

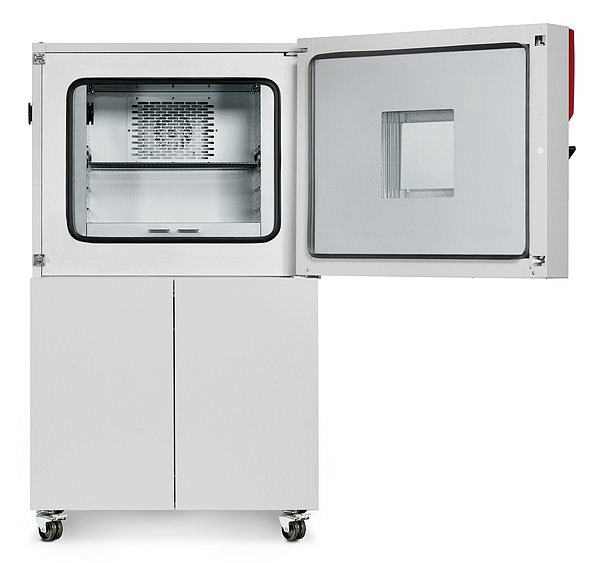

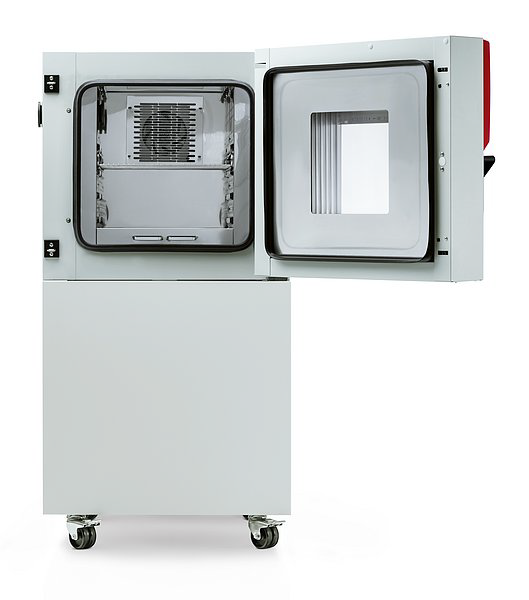

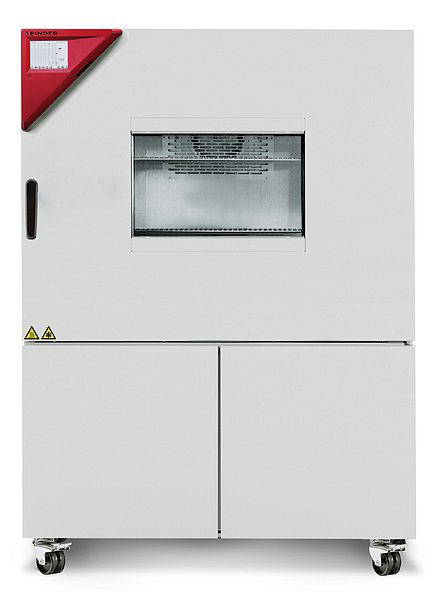

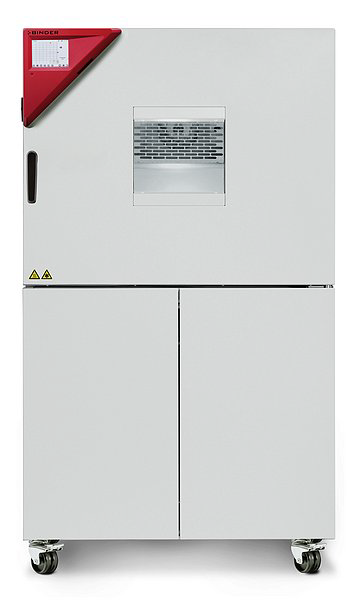

DYnamic CLIMATE CHAMBER Reach-in Temperature Chamber | MODEL MKF 720 | MODEL MKF 240 | MODEL MKF 115 | MODEL MKF 56 |
ELECTRICAL (V) | 400 or 480 V | 400 OR 480 V | 400 OR 480 V | 230 or 240 V |
External Dimensions (W x D X H) | 62.3″w x 44.9″D x 79″H (1582 x 1140 x 2006 MM) | 43.9″w x 36.4″D x 67.6″H (1115 x 925 x 1710 MM) | 38.61″w x 34.08″D x 68″H (980 x 865 x 1725 MM) | 28.37″W X 30.7″D X 56.9″H (720 x 778 x 1445 MM) |
internal dimensions (W x D x H) | 47.3″w x 23.64″D x 40.2″H (1201 x 600 x 1021 MM) | 28.9″w x 17.5″D x 27.6″H (735 x 443 x 700 MM) | 23.64″w x 15.76″D x 18.91″H (600 X 400 X 480 MM) | 15.76″W X 13.71″D X 16.55″H (400 x 350 x 420 MM) |
Volume | 734 Liters | 228 LITERS | 115 Liters | 60 LITERS |
EFFECTIVE CAPACITY | 25.9 CU.FT | 8 CU.FT | 4.1 CU.FT | 2.1 CU.FT |
NET WEIGHT (UNIT EMPTY) | 1301 LBS | 593 lbs | 472 LBS | 386 LBS |
Temperature Range | -40°C to +180°C | -40°C TO +180°C | -40°C TO +180°C | -40°C TO +180°C |
DOORS | 1 Door | 1 DOOR | 1 DOOR | 1 DOOR |
SHELVES (STD/MAX) | 1/11 | 1/6 | 1/4 | 1/4 |
MATERIAL | STAINLESS STEEL | STAINLESS STEEL | STAINLESS STEEL | STAINLESS STEEL |
