Specifications
Specifications

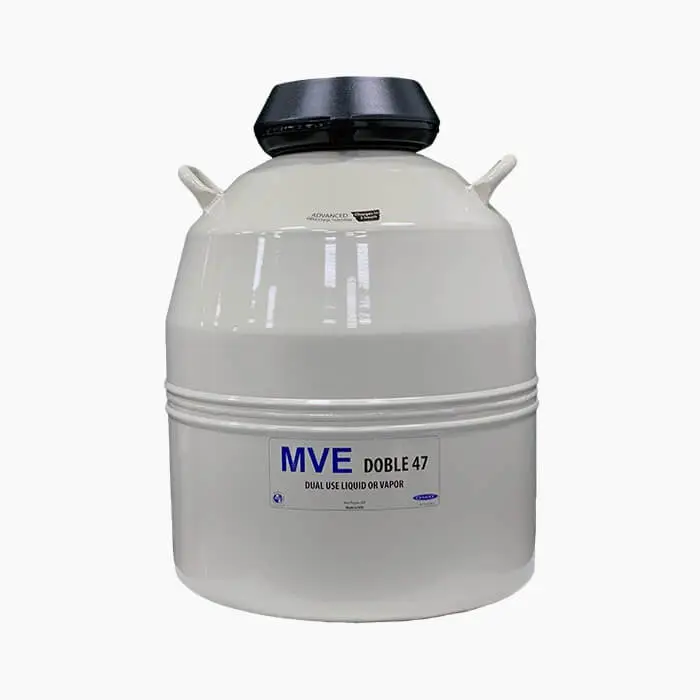

MVE Doble Series Model | 11 | 20 | 22 | 28 | 34 | 47 | 47-10 |
No. of Canisters | 6 | 6 | 6 | 6 | 6 | 6 | 10 |
No. of 1/2cc Straws (10/cane) | 660 | 660 | 2400 | 2400 | 2100 | 4500 | 3500 |
Vial Capacity | 210 | 210 | 810 | 810 | 630 | 1320 | 1050 |
LN2 Capacity w/o Inventory (litres) | 10.0 | 18.5 | 20.0 | 28.0 | 32.0 | 46.0 | 46.0 |
Vapor Capacity (litres) | 3.1 | 4.2 | 5.5 | 8.4 | 7.9 | 6.0 | 6.0 |
Static Evaporation Rate (litres per day) | 0.17 | 0.10 | 0.35 | 0.35 | 0.20 | 0.40 | 0.40 |
Working Duration (days for liquid) | 37 | 116 | 40 | 50 | 110 | 74 | 72 |
Working Duration (days for vapor) | 17 | 21 | 18 | 21 | 21 | 21 | 21 |
