Specifications
Specifications

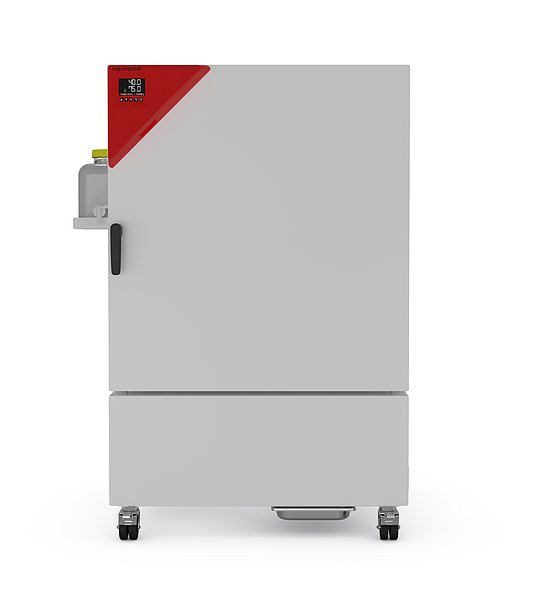

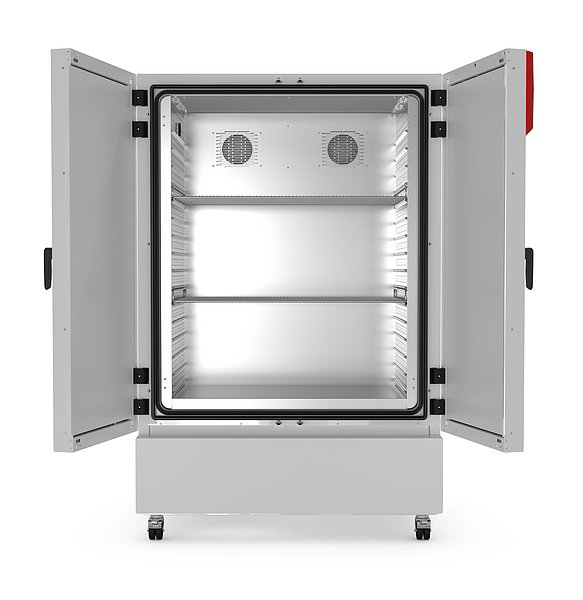

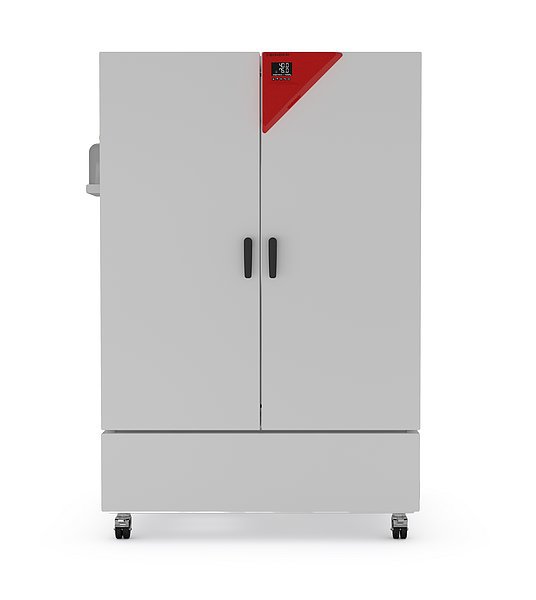

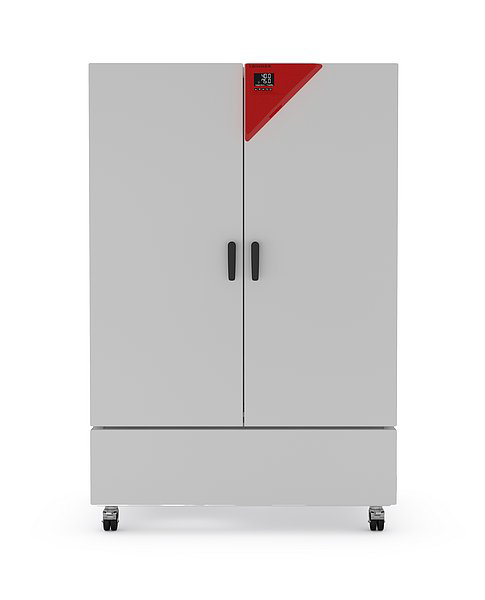

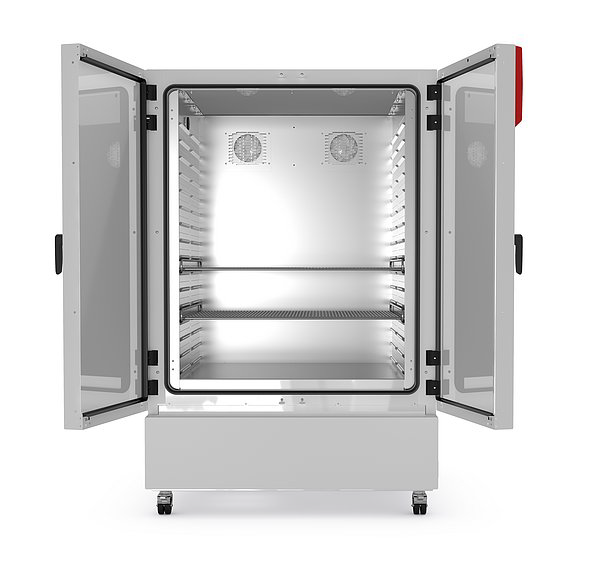

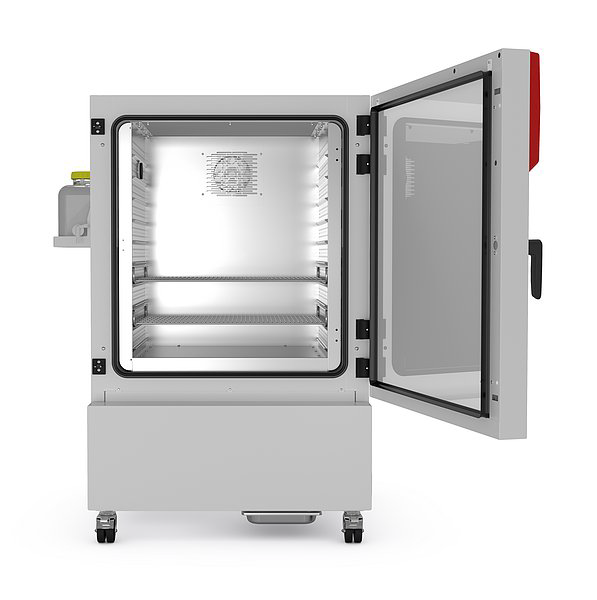

CONSTANT CLIMATE Pharmaceutical Stability Chamber with a large temperature and Humidity range | MODEL KBF-S 1020 | MODEL KBF-S 720 | MODEL KBF-S 240 | MODEL KBF-S 115 |
ELECTRICAL (V) | 230 or 240 V | 230 or 240 V | 230 or 240 V | 230 or 240 V |
External Dimensions (W x D X H) | 49.3″w x 45.1″D x 75.8″H (1252 x 1145 x 1925MM) | 49.3″w x 35.07″D x 75.8″H (1252 X 890 X 1925 MM) | 36.45″w x 31.52″D x 57.5″H (925 x 800 x 1460 MM) | 34.67″w x 25.61″D x 41.4″H (880 X 650 X 1051 MM) |
internal dimensions (W x D x H) | 38.34″w x 32.94″D x 49.3″H (976 X 836 X 1252 MM) | 38.34″w x 22.69″D x 49.3″H (973 X 576 X 1252 MM) | 25.61″w x 19.11″D x 30.93″H (650 X 485 X 785 MM) | 23.64″w x 13.83″D x 19.03″H (600 X 351 X 483 MM) |
Volume | 1020 Liters | 700 LITERS | 247 Liters | 102 LITERS |
EFFECTIVE CAPACITY | 36 CU.FT | 24.7 CU.FT | 8.7 CU.FT | 3.6 CU.FT |
NET WEIGHT (UNIT EMPTY) | 836 LBS | 626 lbs | 379 LBS | 282 lbs |
Temperature Range | 0°C to +70°C | 0°C to +70°C | 0°C to +70°C | 0°C to +70°C |
HUMIDTY RANCE | 20% TO 80% RH | 20% TO 80% RH | 20% TO 80% RH | 20% TO 80% RH |
DOORS | 2 Doors | 2 DOORS | 1 DOOR | 1 DOOR |
SHELVES (STD/MAX) | 2/15 | 2/15 | 2/9 | 2/5 |
MATERIAL | STAINLESS STEEL | STAINLESS STEEL | STAINLESS STEEL | STAINLESS STEEL |
