PHCbi Cryogenic Chest Freezer -150°C I Pacific Science, LLC

Specifications

PHCBI Cryogenic Chest Freezer	MDF-C2156VANC-PA
Power supply	220 v
External Dimensions (W x D X H)	68.1″W x 30.1″D x 39.8″H (1730 x 765 x 1010 mM)
Internal Dimensions (w x D x H)	29.9″W x 19.5″D x 24.2″H (760 x 495 x 615 mM)
Capacity	8.2 cu.ft.
Volume	231 Liters
Net Weight	716 lbs (325 kG)
storage (boxes) for 2″ / 51 mm fiberboard boxes	165 boxes / 15 racks
STORAGE (BOXES) FOR 3″ / 51 MM FIBERBOARD BOXES	105 boxes / 15 racks
Cooling Performance	-150°C
Temperature Setting Range	-125 ~ -152 °C
Temperature Control Range	-125 ~ -150°C
compressor	(1) 1100 W high-stage hermetic (1) 1100 w low-stage mermetic type
Controller	Microprocessor
Display	LED
Temperature Sensor	Pt-1000
Refrigerant	High-stage R407D Low-stage HFC mixed refrigerant
Insulation Material	rigid foamed-in-place and VIP Plus insulation panels
Insulation Thickness	135mm
Exterior Material	Painted Steel
Interior Material	Aluminum
Outer Door Lock	Y
Inner Doors / Lid	2
Mad Load – Total	207 kg
Access Port	1
Access Port Position	side
Access Port Diameter	12.7 mm
Casters	6 (3 leveling feet)
Power Failure	V-B-R
High Temperature	V-B-R
Low Temperature	V-B-R
Filter	V-B
Door Open	V-B
Power Supply	Local
Frequency	Local
Noise Level	51 dB (A)

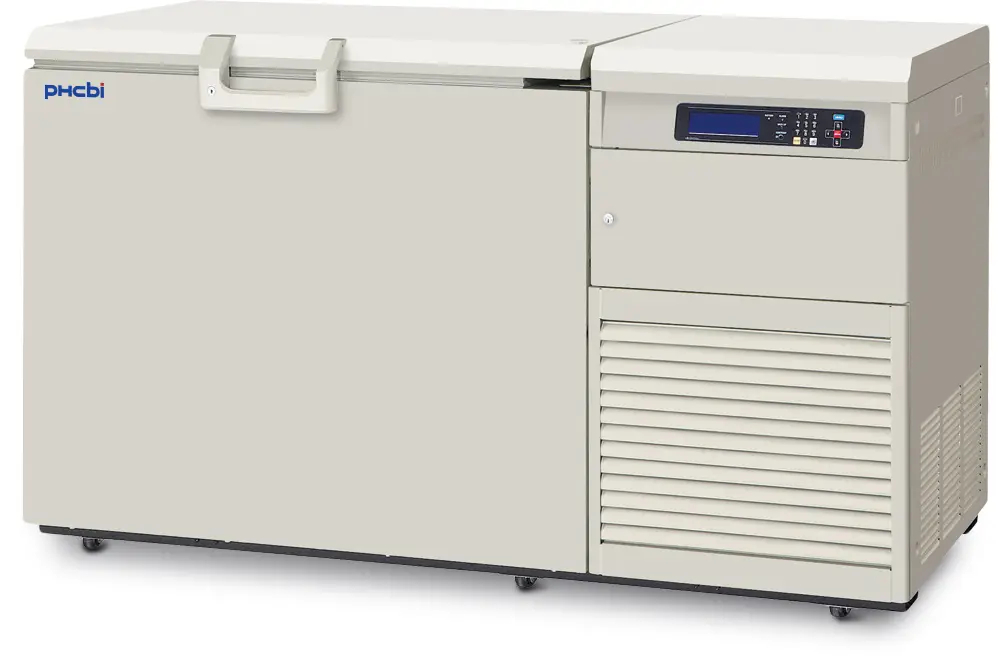

Overview: -150°C PHCbi Cryogenic Chest Freezer

The PHCbi VIP PLUS Cryogenic Series -150°C ultra-low temperature freezers offer superior performance. As a cryogenic freezer or cryogenic storage space, these products provide unsurpassed uniformity in the chamber, from top-to-bottom, side-to-side, and front-to-back.

Compared to liquid nitrogen systems, Cryogenic MDF-C2156VANC-PA offers the following advantages:

Lower running cost
Easy maintenance
No occurrence of contamination

PHCbi VIP® Plus Insulation Technology

Inside-out engineering starts with our patented VIP Plus insulation composite which results in a highly efficient, thin-walled cabinet. The insulated inner lid improves temperature uniformity, minimizes cold air loss from frequent lid openings and extends warm-up times during power outages. The PHCbi VIP Plus cryogenic refrigeration offers superior performance providing unsurpassed uniformity in the chamber from top-to-bottom, side-to-side, and front-to-back.

High Capacity Storage, Minimal Cabinet Footprint

The VIP Plus cabinet design dramatically reduces wall thickness, allowing for increased cryogenic storage space in a smaller footprint. Store up to 165 2″ boxes or 105 3″ boxes.

Economic Alternative to LN₂ Storage

The PHCbi MDF-C2156VANC-PA cryogenic freezer eliminates hazardous operating conditions as well as frequent maintenance and cost requirements of LN₂ storage. It also minimizes the chance of cross-contamination among multiple samples in cryogenic storage.

Microprocessor Temperature Control

The integrated microprocessor-based controller and LCD graphic display allow for intuitive management and monitoring of critical set points. The controller uses an extremely precise and long-lasting platinum RTD sensor.

PHC Designed Compressors

The robust -150°C Cryogenic Freezer is powered by PHC designed compressors. This provides superior performance leading to faster pull-down speed and unsurpassed uniformity throughout the chamber.

Environmentally Friendly

Energy efficiency in VIP Plus freezers is achieved through balanced temperature performance and power management.

VIP Plus -150°C Cryogenic Freezer

Capacity 8.2 cu. ft. I 231 L
