Specifications

	MODEL MPR-N250FSH-PA
ELECTRICAL (V)	115 V

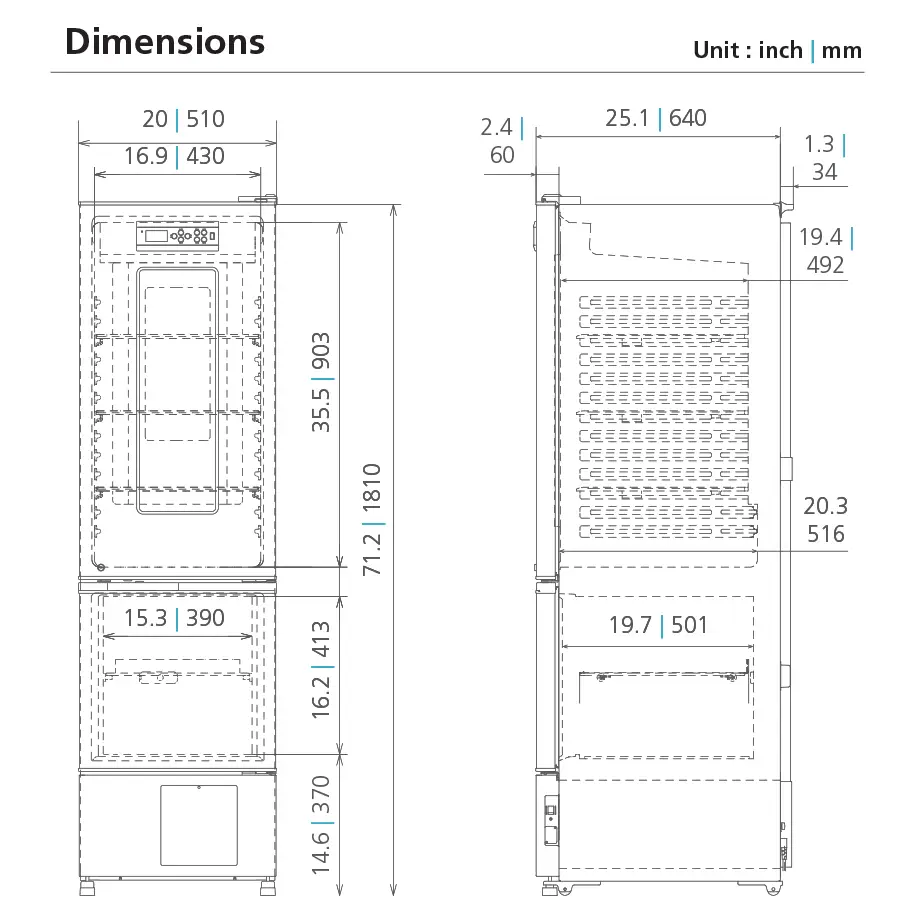

External Dimensions (W x D X H)	20″W x 25.1″D x 71.2″H (510 x 640 x 1810 MM)
Internal Dimensions (W x D x H)	Refrigerator 16.9″W X 20.3″D X 35.5″H (430 x 516 x 903 mM) FREEZER 15.3″ W x 19.7″ D x 16.2″ H (390 x 501 x 413 mm)
Volume	REFRIGERATOR 179 L / FREEZER 80 L
EFFECTIVE CAPACITY	REFRIGERATOR 6.3 cu.ft / FREEZER 2.8 cu.ft.
NET WEIGHT	210 LBS (95 KG)
Temperature Control Range	REFRIGERATOR +2~+14°C FREEZER -30°C~20°C
refrigerant	REFRIGERANT – SNAP Approved HC R-600A FREEZER – HC R-290
Insulation Material	Polyurethane form in place, cfc free
exterior material	painted steel
interior material	refrigerator – colored steel / abs resin freezer – painted steel
Shelves	REFRIGERATOR – 3 tempered glass, adjustablE FREEZER – 1 PE Coated WIRE
Access Port	2
Access Port Position	Back wall left and lower back middle
COMPRESSOR	Refrigerator – (1) 120 inverter FREEZER – (1) 120
alarms	high-low temperature, door, power failure, over-heat protector (refrigerator), over cool protector (refrigerator), key lock, thermal sensor abnormality, circuit breaker
casters	4 plus 2 leveling feet on front
Noise Level	40 db(a)

A slim profile cabinet design with solid doors is ideal for small spaces.
Separate refrigerator and freezer compartments provide a more comprehensive range of temperature storage points to accommodate a variety of vaccine product cold chain requirements.
The single cabinet includes two independent temperature-controlled chambers with separate refrigeration systems.
- The freezer system maintains temperatures as low as -30°C and can be set between -20°C and -30°C, while the refrigerator system allows for a temperature between +2°C to +14°C.
Natural refrigerants
The laboratory refrigerator freezer combination is ideal for reagents, vaccine storage, and biological samples.
Includes manual defrosts for the freezer compartment, and automatic defrost for the refrigerator compartment.
Removable glass shelves.
The password-protected control panel provides security and minimizes the risk of accidental changes.
Adjustable audible and visual alarms.

Laboratory Refrigerator/Freezer Combo
