Specifications
Specifications

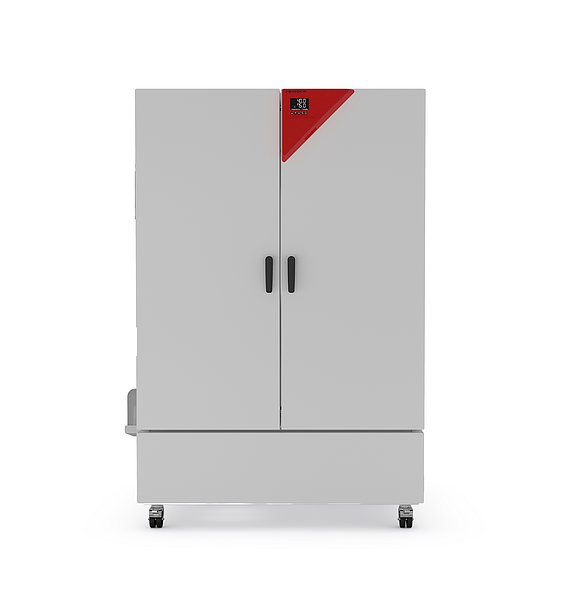

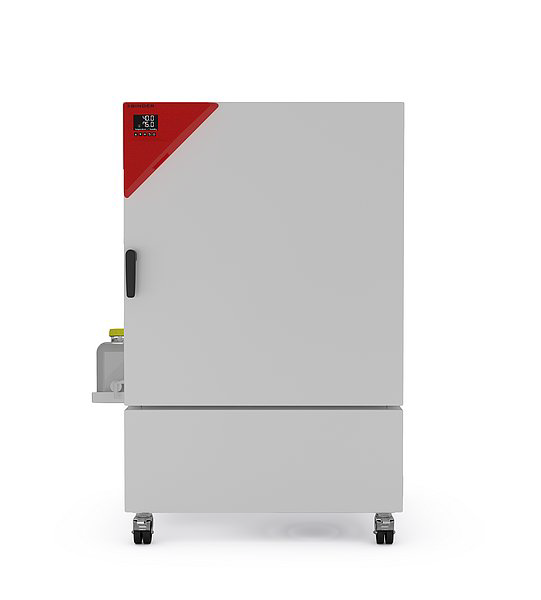

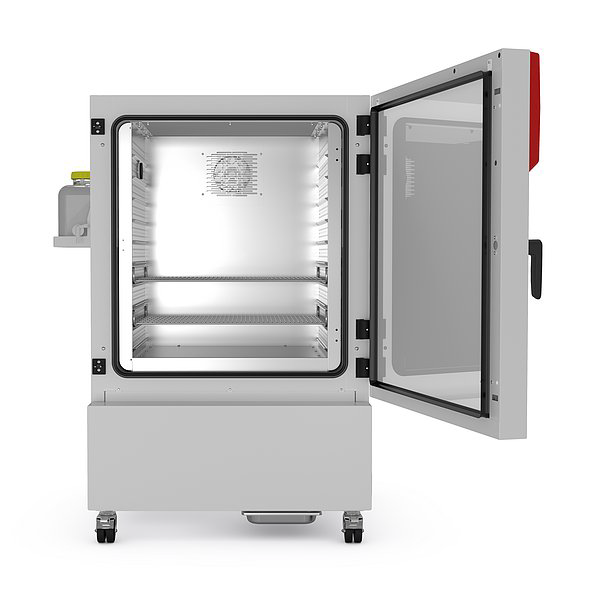

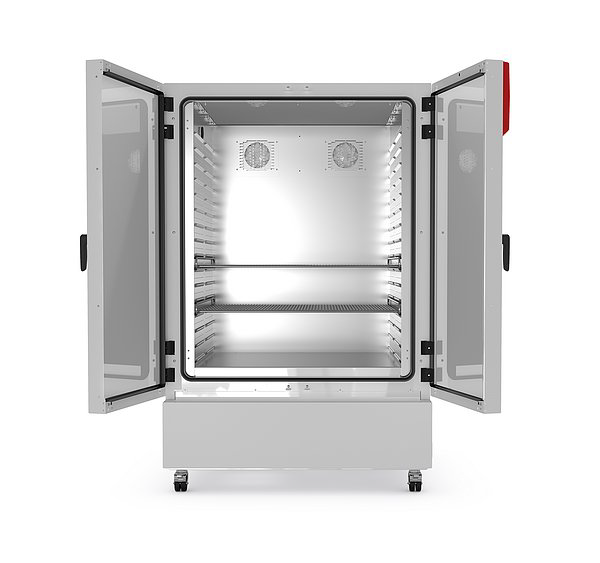

CONSTANT CLIMATE Environmental test Chamber | MODEL KBF-S ECO 1020 | MODEL KBF-S ECO 720 | MODEL KBF-S ECO 240 |
ELECTRICAL (V) | 120 or 230 V | 120 OR 230 V | 120 OR 230 V |
External Dimensions (W x D X H) | 49.3″w x 45.3″D x 75.8″H (1252 x 1150 x 1925MM) | 49.3″w x 34.87″D x 75.8″H (1252 X 885 X 1925 MM) | 36.69″w x 31.36″D x 57.6″H (932 x 796 x 1461 MM) |
internal dimensions (W x D x H) | 38.34″w x 32.94″D x 49.3″H (973 X 836 X 1252 MM) | 38.34″w x 22.69″D x 49.3″H (973 X 576 X 1252 MM) | 25.61″w x 19.11″D x 30.90″H (650 X 485 X 785 MM) |
Volume | 1020 Liters | 700 LITERS | 247 Liters |
EFFECTIVE CAPACITY | 36 CU.FT | 24.7 CU.FT | 8.7 CU.FT |
NET WEIGHT (UNIT EMPTY) | 836 LBS | 688 lbs | 417 LBS |
Temperature Range | 0°C to +70°C | 0°C to +70°C | 0°C to +70°C |
HUMIDTY RANCE | 10% TO 80% RH | 10% TO 80% RH | 10% TO 80% RH |
DOORS | 2 Doors | 2 DOORS | 1 DOOR |
SHELVES (STD/MAX) | 2/15 | 2/15 | 2/9 |
MATERIAL | STAINLESS STEEL | STAINLESS STEEL | STAINLESS STEEL |
