Specifications
Specifications
Cytogrowth co2 incubator | MODEL mco-80icl-pa |
ELECTRICAL (V) | 115 V |

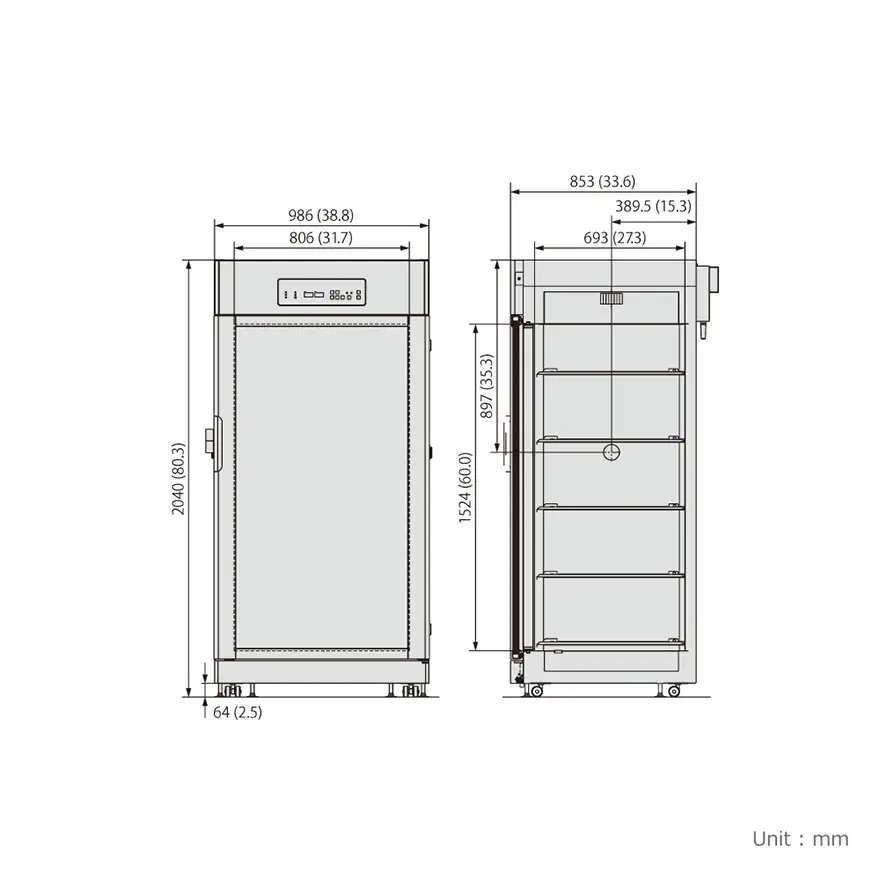

External Dimensions (W x D X H) | 38.6″w x 37.2″D x 80.3″H (986 x 945 x 2040 MM) |
internal dimensions (W x D x H) | 31.7″w x 27.3″D x 60″H (806 x 693 x 1524 MM) |
Volume | 851 Liters |
EFFECTIVE CAPACITY | 30.1 CU.FT |
NET WEIGHT | 606 LBS. (275 KG) |
Temperature Control Range | Ambient temperature +5°C to +50°C |
TEMPERATURE UNIFORMITY | ±0.50ºC (ambient temperature: 25ºC, setting: 37ºC, CO2: 5 %, no load) |
co2 CONTROL RANGE | 0% TO 20% |
CO2 CONTROLLER | pid CONTROLLER |
CO2 GAS PRESSURE | 0.1 mpAg (INJECT) 15 PSIg) |
CO2 VARIATION | ±0.15% (ambient temperature: 25ºC, setting: 37ºC, CO2: 5%; no load) |
COS SENSOR TYPE | INFRARED SENSOR |
SHELVES | 30.6″ W x 25.9″D (776 X 659 MM) |
OUTER DOOR | DOUBLE PAINED GLASS DOOR WITH HEATER AND OUTER DOOR LATCH |
ACCESS PORT | 2: RIGHT AND LEFT SIDES (1.6″ / 40 mm DIAMETER) |
